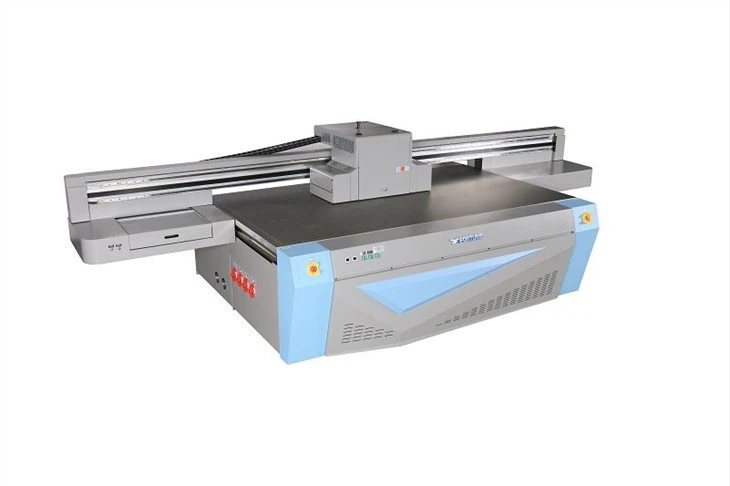

UV flatbed G5 tshuab luam ntawv
Lub hauv paus ntsiab lus ntawm G5 tshuab luam ntawv yog tias tom qab UV number case luam tawm, nws tau kho los ntawm UV teeb. Txhawm rau ua tiav cov txiaj ntsig embossing, G5 lub tshuab luam ntawv xav tau 2 lossis ntau dua luam tawm kom ua rau UV number case txuas ntxiv mus. Lub hauv paus ntsiab lus luam ntawv yog ua raws li X axis thiab Y axis. Axis, qhov no yog lub hauv paus ntsiab lus ntawm UV nyem.
 |  |  |
1.Heavy-duty industrial qib tshuab ncej, zoo heev stability thiab durability
2.Anti-kev sib tsoo system, Ink tank cua sov system
3.UV LED curing system, Ob chav Y-axis +Ob chav ntsia hlau tsav.imported DC srvo lub cev muaj zog.
Tshuab | YF-2512G UV flatbed tshuab luam ntawv | |
Sau taub hau | Ricoh GEN5 Grey theem piezoelectric nozzle | |
Lub taub hau No. | 2-12 | |
Hom ntawv luam tawm | 4C/6C/4C+W/6C+W/Double 4C+W/Double 6C+W/Triple 4C + ob W/Triple 6C + Ob W | |
Sau dav | 2400 x 1200 mm | |
Luam nrawm | 4 Pass | 22㎡/h |
6 Pass | 18㎡/h | |
8 Pass | 14㎡/h | |
Kev daws teeb meem luam tawm | 720 * 1800 hli | |
Cov ntaub ntawv luam tawm | Galass, Acylic phaj, Ntoo, Ceramic vuas, Hlau ntawv, PVC board, Foamboard, 3C khoom thiab lwm yam. | |
Sau qhov siab | ≤100mm | |
Kho qhov system | LED dej txias system | |
Hom ntawv nkag | TIFF/PDF/JPEG/EPS | |
RIP Software | Photoprint/Onyx/Caldera/Colorget | |
Cov ntaub ntawv txuas | USB 3.0 | |
Input zog | 220VAC (± 10%) ib theem, 50/60 HZ | |
Hwj chim | 5.5KW (30A) | |
Machine size / NW | 4.75m (L) * 2.1m (W) * 1.4m (H) / 1550KG | |
Packing loj / GW | 4.9m (L) * 2.28m (W) * 1.75m (H) / 1650KG | |
Ntau yam khoom muaj feem xyuam:
Client Feedback:
Lub Hoobkas muaj zog:
Peb Cov Kev Pabcuam:
1. 12 lub hlis warranty, lub neej ntev kev pab cuam tom qab muag.
2. Technologist instant online kev pab txhawb nqa.
3. Ib qho rau ib qho kev tshaj lij kev cob qhia dawb.
4. Xa engineers mus nruab lub tshuab txawv teb chaws.
5. Kev pab txhawb nqa, kev taw qhia chaw taws teeb.
6. 18-teev Kev Pabcuam Online, Kev pabcuam online zoo, teb cov lus nug tam sim rau koj.
7. peb muab kev pabcuam ODM / OEM.
